The LCT 1PLUS storage tanks with extra large heating coil from ACV are extremely suitable for the storage (buffer) and heating of tap water or sanitary hot water. The entire range consists of 5 basic versions from 500 to 1500 liters capacity.
The interior of the LCT 1PLUS storage tank is equipped with an enameled coating and protected by a magnesium anode. The exterior is finished with a protective coating and is available with three different types of insulation:

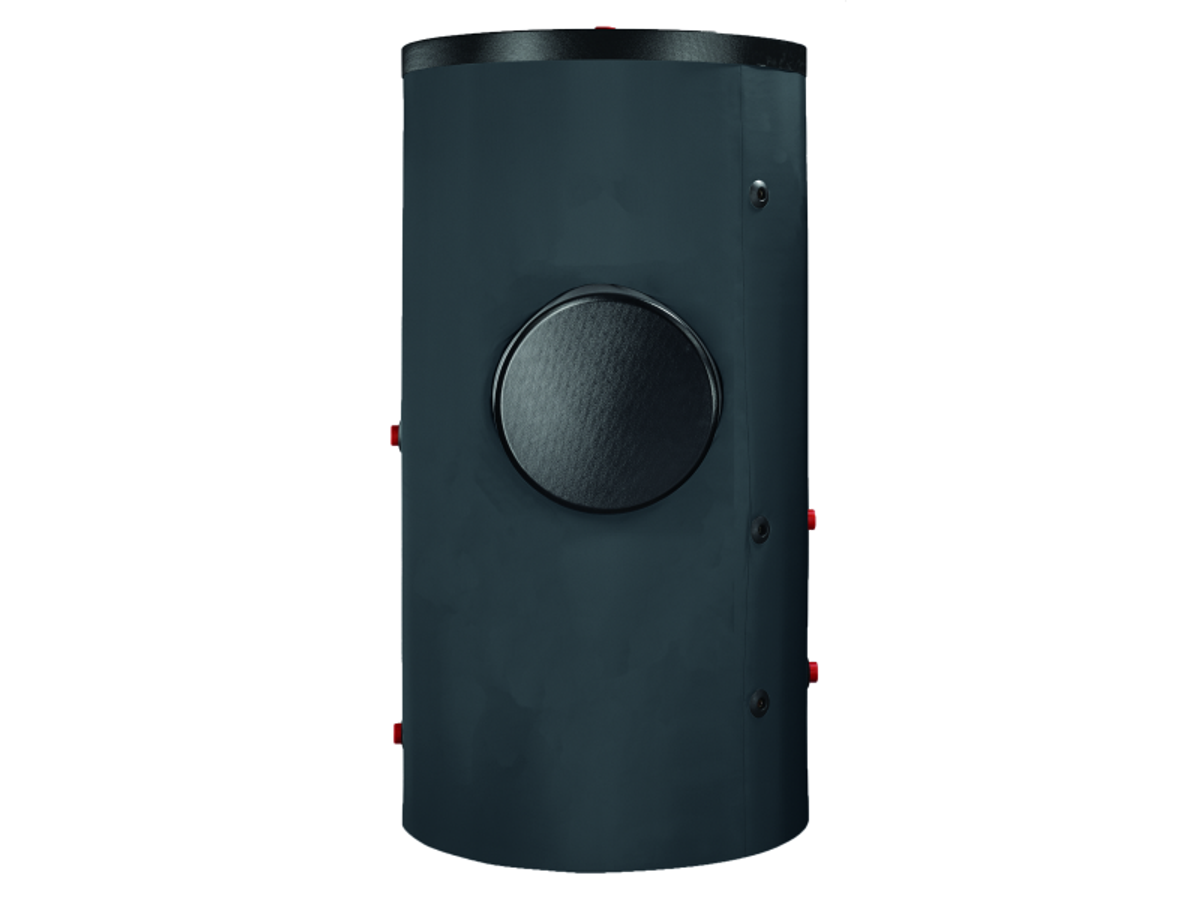

- M0: 100 mm mineral wool insulation finished with a rigid plate shell

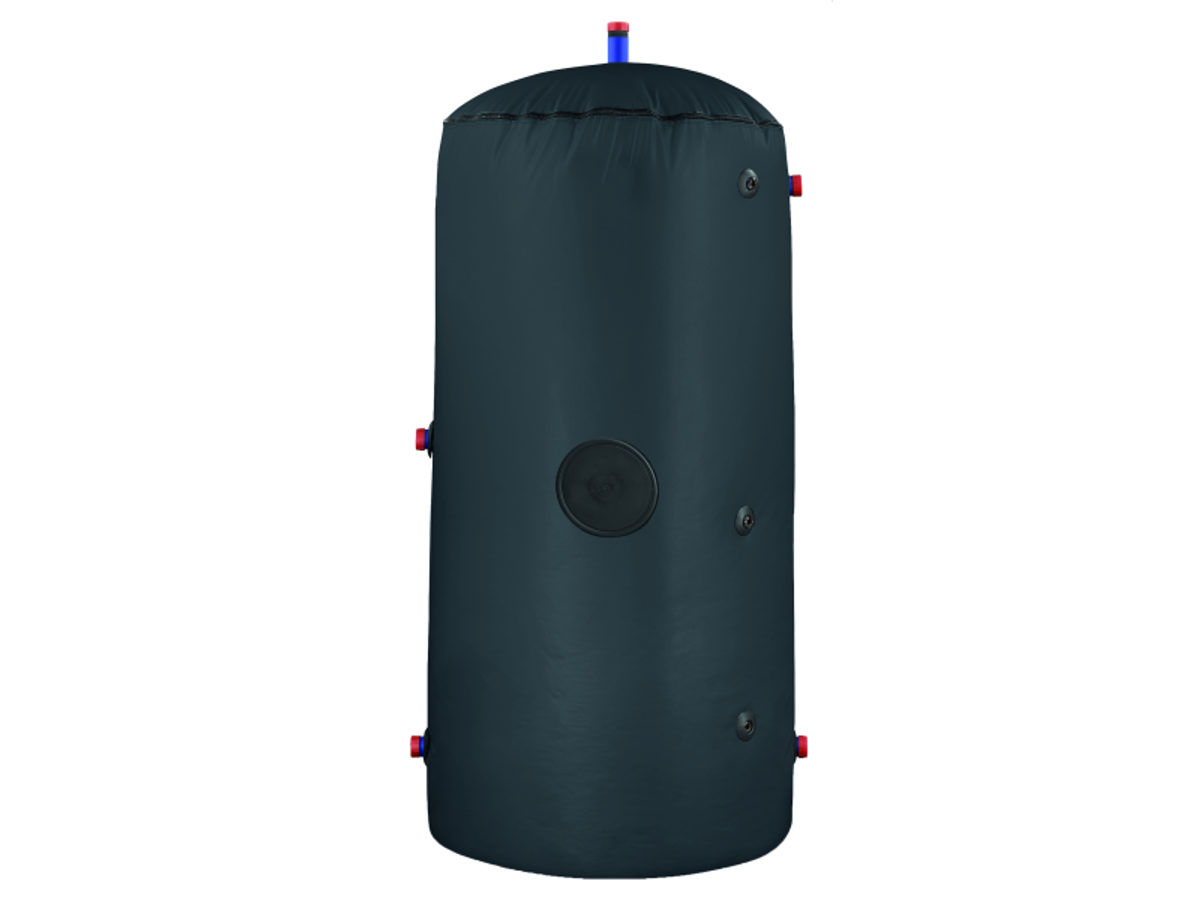

- M1: 100 mm mineral wool insulation finished with a fire-resistant and flexible PVC covering
- Top NC: 100 mm mineral wool insulation with a flexible PVC covering (not classified)
All LCT 1PLUS storage tanks can additionally be equipped with a wet or dry heating element for extra electric heating.
For easy installation, the LCT series is equipped with lifting rings and support feet and is also available in a low-profile version (TB) with a maximum diameter of 790 mm that allows easy access through a standard doorway.
- High-quality enameled and insulated tank resistant to thermal shocks, high temperatures, and chemical cleaning agents.
- Equipped with an extra heating coil.
- Suitable for storing drinking water, sanitary hot water.
- Hot sanitary connection at the highest point of the tank.
- Multiple connections with sensor housings for good access to temperature control
- Protection of the enameled coating by a magnesium anode.
- A flow breaker for the gradual supply of cold water.
- Equipped with a manhole flange on the side of Ø 400 mm (from 750 liters) for internal inspection and for the installation of the electric resistances.
- A central drain at the lowest point of the tank.
*Sanitary hot water is also referred to as SHW
